Slop closets

Description

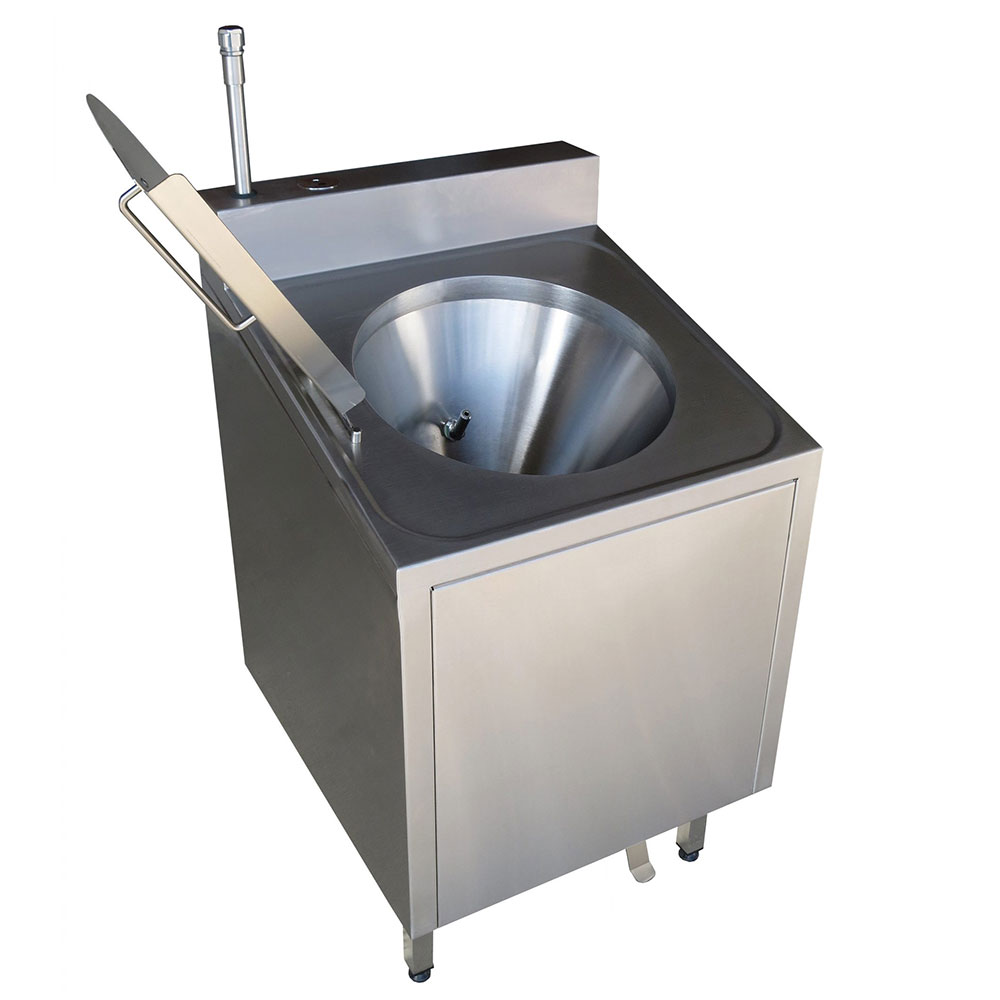

Slop closet 3076, 3076/V touch free

Slop closets are used for flushing disposing solid and fluid waste into the drain. For example kidney dishes and bottles can be emptied into the closet.

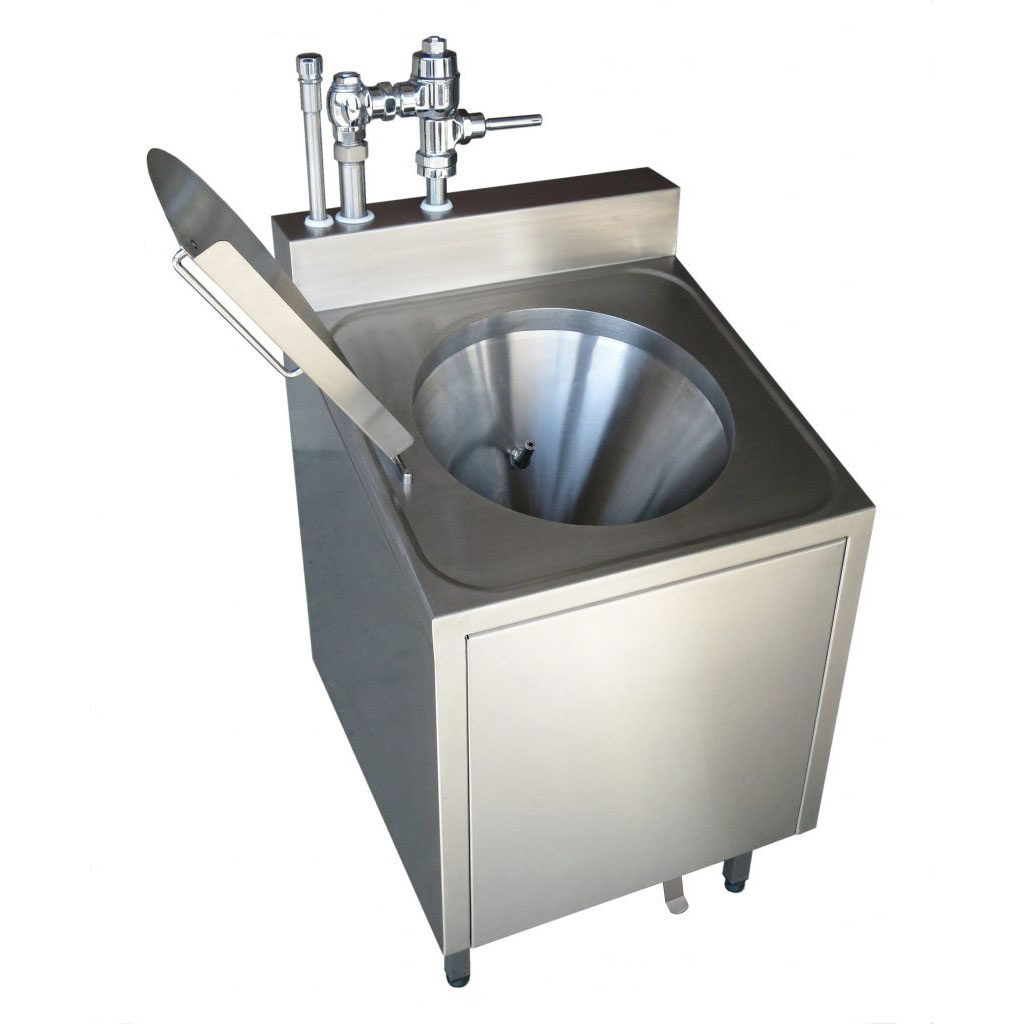

The inside surface of the slop closet is smooth and is assembled for a proper flushing of the waste. Water flows evenly to the slop closet from the flushing ring under the edge of the pouring hole. Waste is flushed using a manual flushing valve. The closet is also manufactured with a foot operated nozzle for easy rinsing of the containers.

The pouring area of 3075/V and 3076/V slop closet is angled for easier emptying of the containers and improving ergonomics.

Product data sheet

Maintenance videos
Cleaning the flushing valve and piston
Adjustment of flushing time and flow
Spindle replacement and cleaning the mud separator

Technical information

Models
3076 Slop closet, touch free, w. rinsing nozzle
3076/V Slop closet, touch free, w. rinsing nozzle, angled

Material
Stainless steel AISI 304

Measurements (width x depth x height)
3076 550 x 600 x 1150 mm (working height 800 mm)
3076/V 550 x 600 x 1150 mm (working height 700 mm)

Accessories included
Hinged lid (blind cover)
Foot operated nozzle
Plastic trap

Accessories optional
3076 and 3076V hinged grid instead of lid, hinged lid with pouring opening

Connections
Cold water connection DN28 (pressure 4,0–8,0 bar)
Drain connection DN110
230 V electrical connection (outlet in device)

Flush valve
Touch free, vacuum breaker included

Installation
Furniture levellers, wall mounting with screws, water and drain connections, 230 V electrical outlet

Flushing time
Default setting 11,2 l / flushing time 16 s
Can be changed during service

Standards and directives taken into account
EN 60204-1 Safety of machinery
ISO 12100:2010 Safety of machinery
Low Voltage Directive 2014/35/EU
EMC Directive 2014/30/EU
Machinery Directive 2006/42/EU

Manufacturer
Kavika HealthCare Oy, Mursketie 6, 15860 Hollola
contact@kavikahealthcare.fi, www.kavikahealthcare.fi

For the designer

The flushing valve of the slop closet releases a large amount of water into the sink in one go, so to attain proper flushing, a cold water supply must be provided using a DN28 connection, the recommended pressure in the pipe being 4.0–6.9 bar. The slop closet is connected to a DN110 drain line.

The outer dimensions of the slop closet are 550x600x900 mm (models 3070 and 3071) and 550x600x1000 mm (3071V).

For the buyer

Pouring closets are available in three different models. Our sales department will assist you in choosing the right model.

Maintenance and use

Cleaning
Stainless steel equipment and fixtures must be cleaned on a regular basis to prevent them from rusting. A water wash is often sufficient for cleaning a stainless steel surface; hot water and steam can be used in special cases.

Impurities and deposits that have adhered to the surface can be removed by rubbing them with an emery cloth, for example. NOTE! The emery cloth must be non-ferrous. It is advisable to first try the treatment on a less noticeable part of the product.

Detergents
Standard cleaning powders or power detergents such as soda, borax or sodium perborate can be used for cleaning stainless steel surfaces.

Alkaline solutions, such as soda, ammonia and diluted soda lye, can be used for dissolving grease. Acetone, petrol, alcohol and similar organic solvents can also be used for removing grease deposits or other water-insoluble matter.

Detergents that contain sulphuric or hydrochloric acid may not be used for cleaning stainless steel surfaces.

Disinfection
The sterilising agents used for disinfection often contain sodium hypochlorite or potassium hypochlorite. However, these substances are dangerous to stainless steel as they easily give rise to pitting corrosion. Other disinfectants that contain chlorine, such as chloramines, are also dangerous. The most affordable disinfectant that is suitable for stainless steel is nitric acid; even mild concentration solutions have a bactericidal effect.

Treatment after cleaning
The detergent must be carefully cleaned from the steel surface. Rinsing with plenty of water is usually sufficient for this purpose. If acidic detergents are used, a pre-rinse should be carried out with a neutralising solution, such as soda.

The user must always ensure that the room concerned is sufficiently ventilated, proper protective gear is used and any in-house occupational heath and safety instructions are complied with.
